Brass Camlock Coupling Type A male grooved adapter and a female pipe thread (BSP or NPT thread)

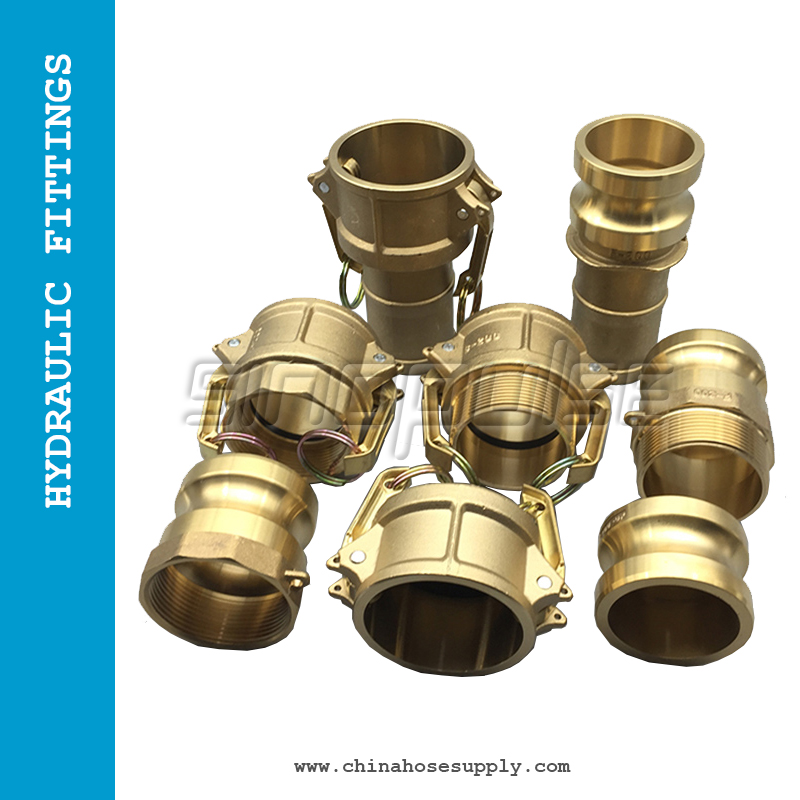

CAM-LOCK COUPLING BRASS Type A
Specifications
● Standard : Made as standard of A-A-59326(Superseding MIL-C-27487) or DIN 2828.
● Casting Method : Sand Casting & Forging
● Size : 1/2"-6"
● Body Material: Brass
● Cam Arm Material: Brass
● Gasket Material:
NBR:(Temp Range°C -30°C~+100°C)
EPDM:(Temp Range°C -50°C~+150°C)
VITON:(Temp Range°C -20°C~+200°C)
PTFE envelop gasker:(Temp Range°C -190°C~+260°C)
Silicone :(Temp Range°C -60°C~+200°C)
Other materials are available on request.
●Thread;
NPT
BSP( We usually producethe female thread parallel BSPP,male thread tapered BSPT)
●Competitive Advantages of the product
A: Precision investment coupling
B:CNC precisely machined
C: Easy to connect and disconnect
D:Used in petrochemical & chemical industries, Fertilizers, steel plants, atomic energy, power plants ect
A, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)
Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size.
Type "B", has a female camlock end and a male pipe thread of the same size.
Type "C", has a female camlock on one end and a male hose tail on the other.
Type "D", has a female camlock end and a female pipe thread of the same size.
Type "E", has a male camlock on one end and a male hose tail on the other.
Type "F", has a male grooved adaptor and a male pipe thread of the same size.
| Size(Inch) | 1/2" | 3/4"-2" | 2-1/2" | 3" | 4" | 5-6" |
| Working pressure (PSI) | 150PSI | 250PSI | 150PSI | 125PSI | 100PSI | 75PSI |
| SIZE | PART#1 | PART#1 | PART#1 | PART#1 | PART#1 | PART#1 | PART#1 | PART#1 |
| 1/2" | SNP-050A-BR | SNP-050B-BR | SNP-050C-BR | SNP-050D-BR | SNP-050E-BR | SNP-050F-BR | SNP-050DC-BR | SNP-050DP-BR |
| 3/4" | SNP-075A-BR | SNP-075B-BR | SNP-075C-BR | SNP-075D-BR | SNP-075E-BR | SNP-075F-BR | SNP-075DC-BR | SNP-075DP-BR |
| 1" | SNP-100A-BR | SNP-100B-BR | SNP-100C-BR | SNP-100D-BR | SNP-100E-BR | SNP-100F-BR | SNP-100DC-BR | SNP-100DP-BR |
| 1-1/4" | SNP-125A-BR | SNP-125B-BR | SNP-125C-BR | SNP-125D-BR | SNP-125E-BR | SNP-125F-BR | SNP-125DC-BR | SNP-125DP-BR |
| 1-1/2" | SNP-150A-BR | SNP-150B-BR | SNP-150C-BR | SNP-150D-BR | SNP-150E-BR | SNP-150F-BR | SNP-150DC-BR | SNP-150DP-BR |
| 2" | SNP-200A-BR | SNP-200B-BR | SNP-200C-BR | SNP-200D-BR | SNP-200E-BR | SNP-200F-BR | SNP-200DC-BR | SNP-200DP-BR |
| 2-1/2" | SNP-250A-BR | SNP-250B-BR | SNP-250C-BR | SNP-250D-BR | SNP-250E-BR | SNP-250F-BR | SNP-250DC-BR | SNP-250DP-BR |
| 3" | SNP-300A-BR | SNP-300B-BR | SNP-300C-BR | SNP-300D-BR | SNP-300E-BR | SNP-300F-BR | SNP-300DC-BR | SNP-300DP-BR |
| 4" | SNP-400A-BR | SNP-400B-BR | SNP-400C-BR | SNP-400D-BR | SNP-400E-BR | SNP-400F-BR | SNP-400DC-BR | SNP-400DP-BR |
| 5" | SNP-500A-BR | SNP-500B-BR | SNP-500C-BR | SNP-500D-BR | SNP-500E-BR | SNP-500F-BR | SNP-500DC-BR | SNP-500DP-BR |
| 6" | SNP-600A-BR | SNP-600B-BR | SNP-600C-BR | SNP-600D-BR | SNP-600E-BR | SNP-600F-BR | SNP-600DC-BR | SNP-600DP-BR |
