Discount wholesale Ac Compressor Hose - Hydraulic Hose SAE100 R3 – Sinopulse Detail:

Construction:

Tube: Oil resistant synthetic rubber

Reinforcement: Two high tensile fibre braided.

Cover: Black, abrasion and weather resistant synthetic rubber, MSHA accepted.

Temperature: -40℃ to +100 ℃

Specification:

Part No.	I.D.		O.D.	W.P		B.P		B.R	W.T
Dash	Inch	mm	mm	MPa	PSI	MPa	PSI	mm	kg/m
R3-04	1/4	6.3	12.6	10.5	1523	42	6090	75	0.145
R3-05	5/16	7.9	14.1	8.7	1262	35	5075	75	0.182
R3-06	3/8	9.7	16.8	8.4	1218	34	4930	100	0.253
R3-08	1/2	12.7	18.4	7.8	1131	31	4495	100	0.282
R3-10	5/8	15.8	23.0	7.0	1015	28	4060	125	0.416
R3-12	3/4	19.0	26.7	6.1	885	24	3480	140	0.499
R3-14	7/8	22.3	31.0	5.2	754	21	3045	150	0.697
R3-16	1	25.4	37.5	3.9	566	16	2320	205	0.844
R3-20	1.1/4″	31.8	45.0	2.6	377	10	1450	250	1.004

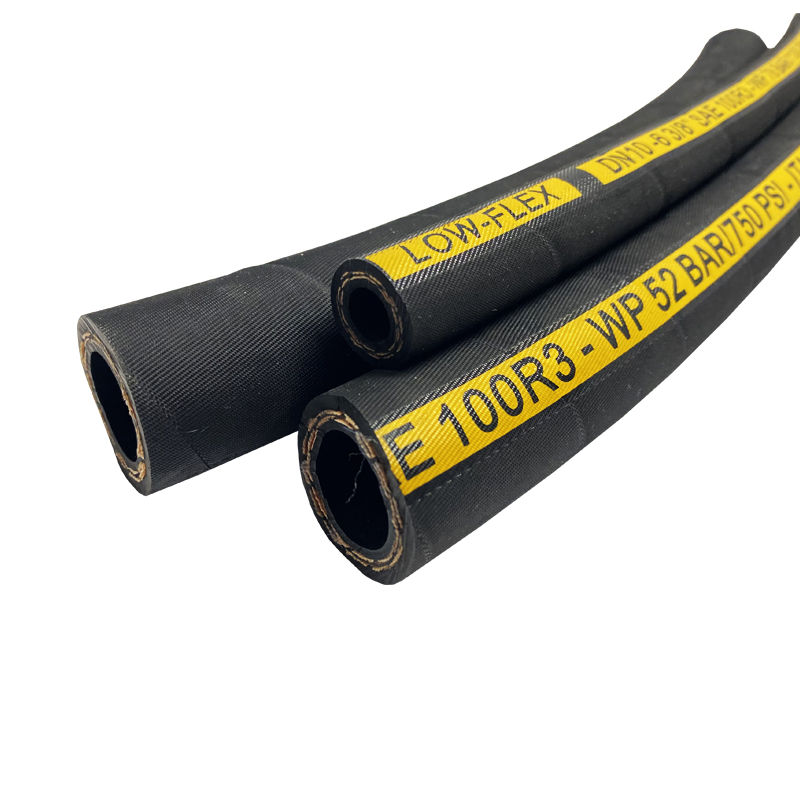

Product detail pictures:
