Hot sale Factory Expandable Hydraulic Hose - Hydraulic Hose DIN EN857 1SC – Sinopulse Detail:

Construction:

Tube: Oil resistant synthetic rubber

Reinforcement: One braid of high tensile steel wire.

Cover: Black, abrasion and weather resistant synthetic rubber, MSHA accepted.

Temperature: -40℃ to +100 ℃

EN857-1SC Hydraulic Hose with One Layer of Steel Wire Reinforcement

EN857-1SC hydraulic hose is suitable for petroleum-based hydraulic oil delivering. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose perform well in delivering hydraulic oil. Reinforcement is made from one layer of high tensile steel wire, making hose have solid structure and bear high working pressure. Cover is made from oil and weather resistant synthetic rubber, making hose resistant to corrosion, abrasion and aging. So the hose can be used in harsh working environment.

The details of EN857-1SC hydraulic hose:

Structure: it is composed of three parts: tube, reinforcement and cover.

Tube: oil resistant synthetic rubber.

Reinforcement: one layer of high tensile steel wire.

Cover: oil and weather resistant synthetic rubber.

Temperature range: -40 °C to +100 °C.

EN 857 1SC single wire braid hydraulic hose for tight routing

Reinforced by one high tensile wire braid, EN 857 1SC hydraulic hose has similar performance as its counterpart SAE 100R1 besides tighter bending radii. Ozone and weather resistant cover separate the tube from the outside environment and effectively extend the service life of hose. Single wire braided 1SC high pressure hydraulic hose is suitable for high pressure conditions where tight routing is required.

Product description:

EN 857 1SC hydraulic rubber hose

EN 857 1SC Hose

Tube: Oil resistant synthetic rubber;

Cover: abrasion and ozone resistant synthetic rubber;

Reinforcement: one braid of high tensile wire;

Max working pressure: 3260psi (22.5Mpa);

Working temperature: -40 to 100°C (-40 to 212°F);

Min bend radius: 75mm;

Inside diameter: 1/4″ to 1″;

Safety factor: 4:1;

Pressure grade: high.

Specification:

Part No.	I.D.		O.D.	W.P		B.P		B.R	W.T
Dash	Inch	mm	mm	MPa	PSI	MPa	PSI	mm	kg/m
1SC-04	1/4″	6.4	13.5	22.5	3263	90	13050	75	0.173
1SC-05	5/16″	7.9	14.5	21.5	3118	85	12325	85	0.194
1SC-06	3/8″	9.5	16.9	18.0	2610	72	10440	90	0.244
1SC-08	1/2″	12.7	20.4	16.0	2320	64	9280	130	0.328
1SC-10	5/8″	15.9	23.0	13.0	1885	52	7540	150	0.416
1SC-12	3/4″	19.1	26.7	10.5	1523	42	6090	180	0.500
1SC-16	1″	25.4	34.9	8.7	1262	35.2	5075	230	0.713

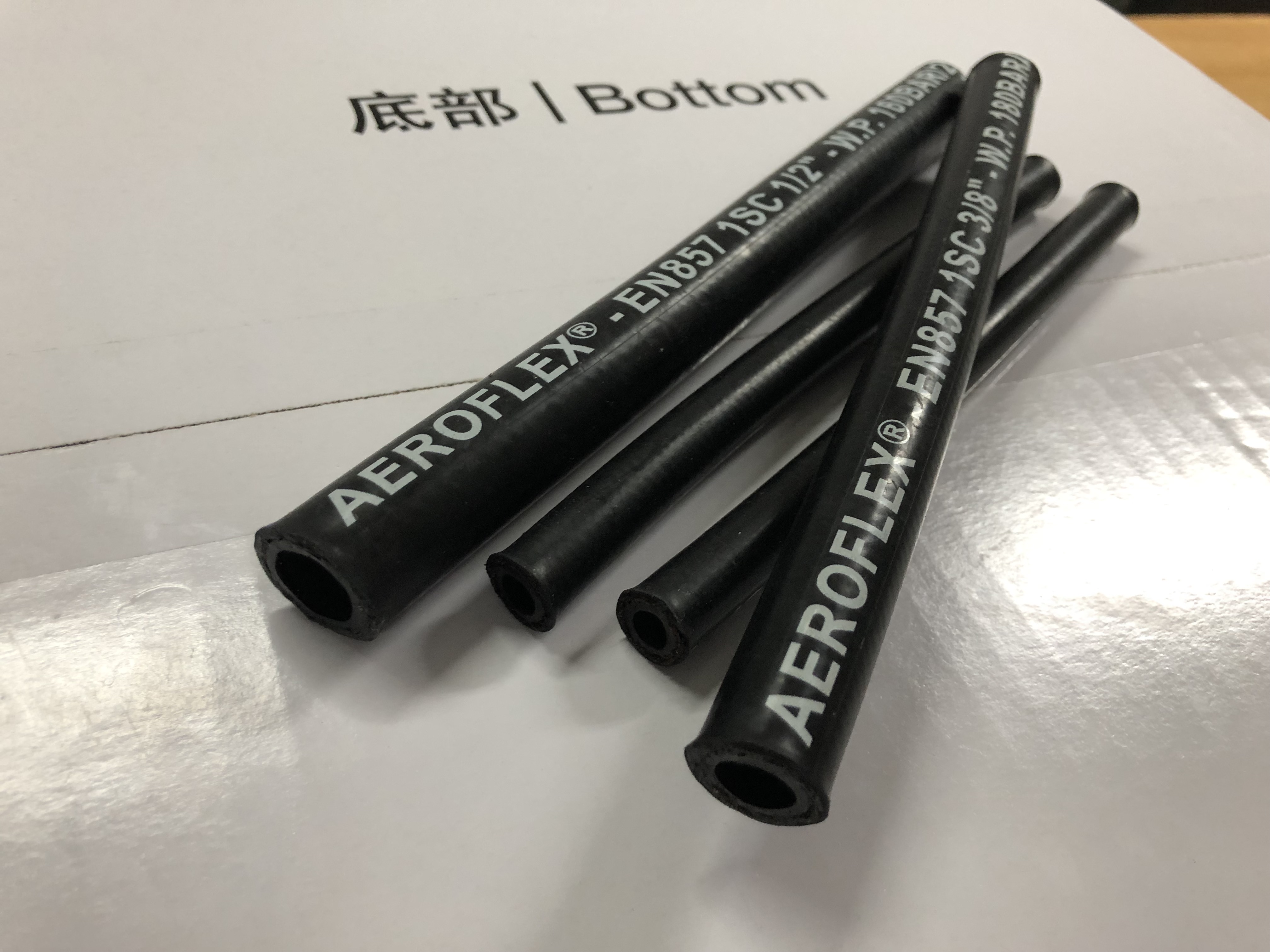

Product detail pictures:
